C_MCD VP 186054

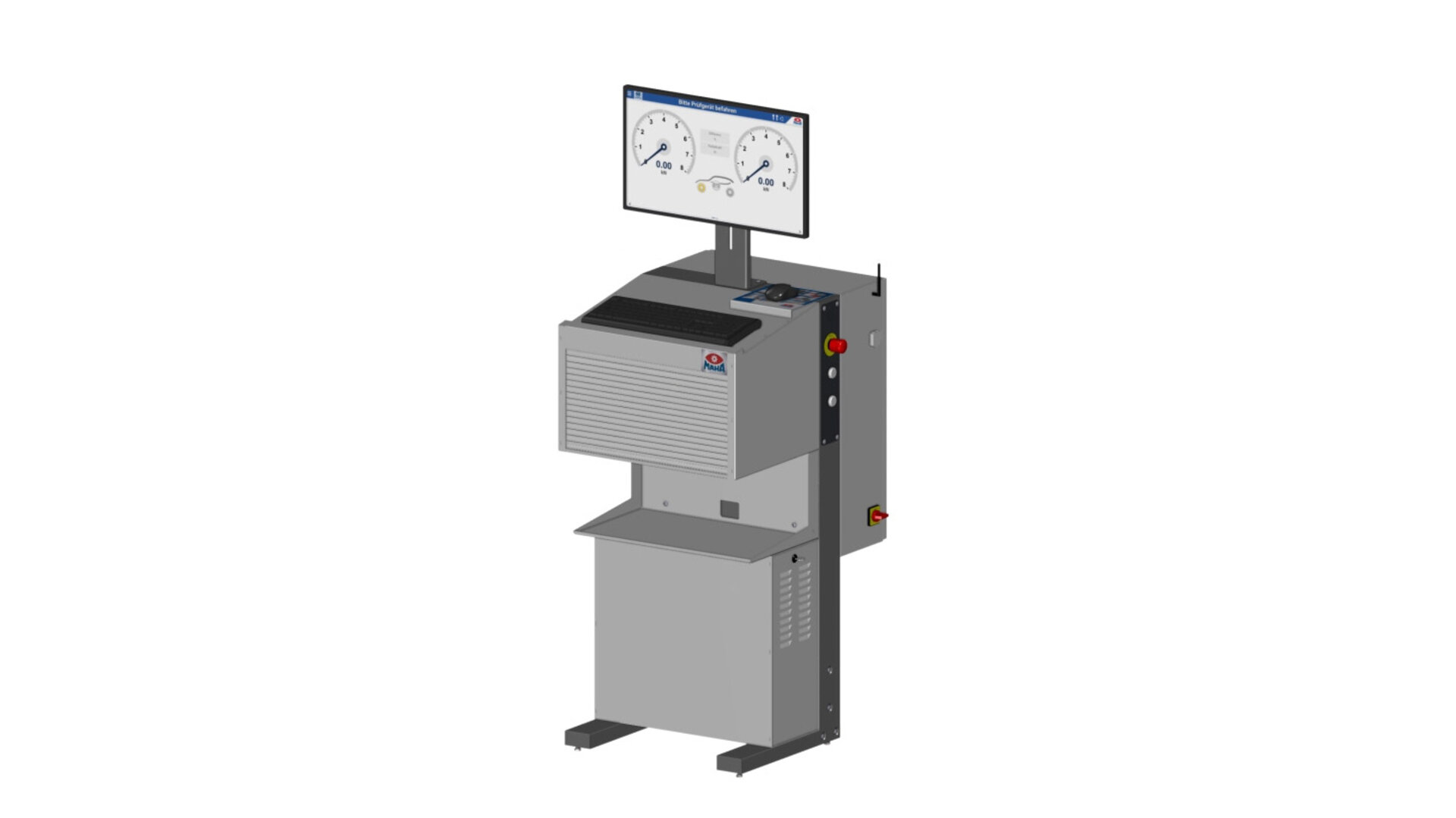

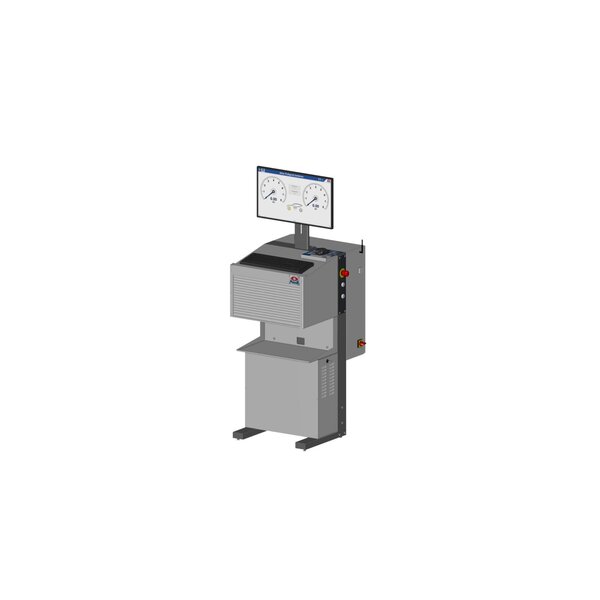

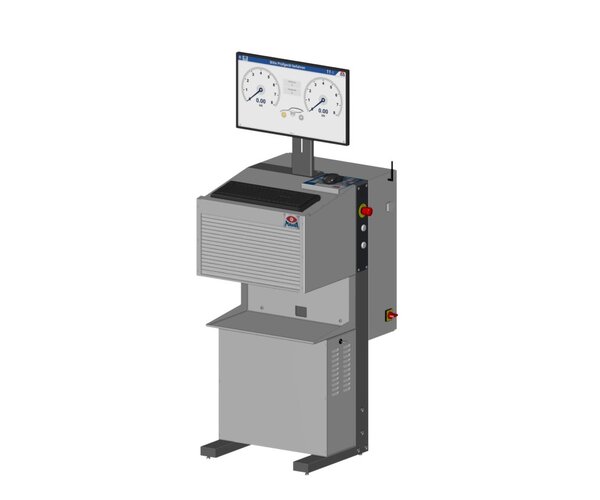

The modular MAHA Universal Console can be expanded from a stand for the CONNECT analog display or a TFT television to a fully equipped input terminal. The mounting option of the C_MBT control cabinet allows free-standing installation and, thanks to the possibility of use in the emission tester and scissors lift area, also ensures a tidy and modern appearance in your workshop or test hall.

product details / scope of delivery

Basic console for modular and customer-specific
expansion up to a fully equipped input terminal.

Also for use as a stand for the Universal
Analog Display or a TFT television up to 40 .
Possibility to accommodate the C_MBT 3.5 - 20.0 basic control
cabinet (Standard).

Downloads

Sales documents

Brochures
Brochure MAHA CONNECT
DE EN
Technical Datasheet
Technical Datasheet C_MCD
DE EN
Technical Datasheet (Printable version) C_MCD
DE EN

Technical Data

Technical data:

Dimensions (H x W x D)1180 x 550 x 460 mm
Weightapprox. 31 kg

  • Colour RAL 7016 anthracite grey
