MBT 2250 EUROSYSTEM VP 210111

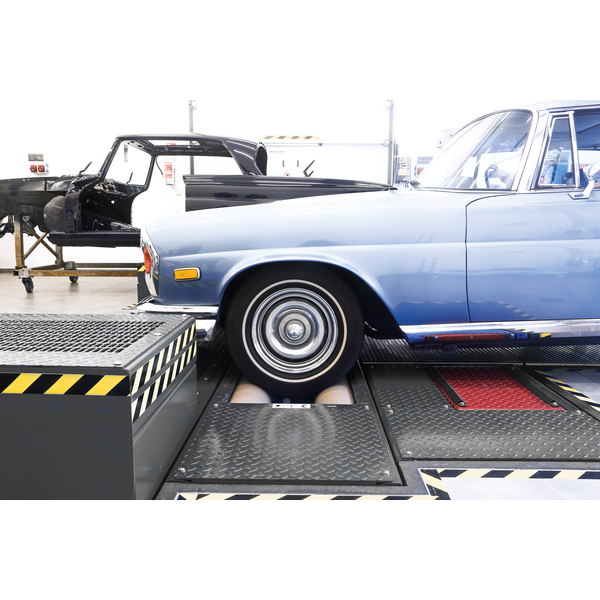

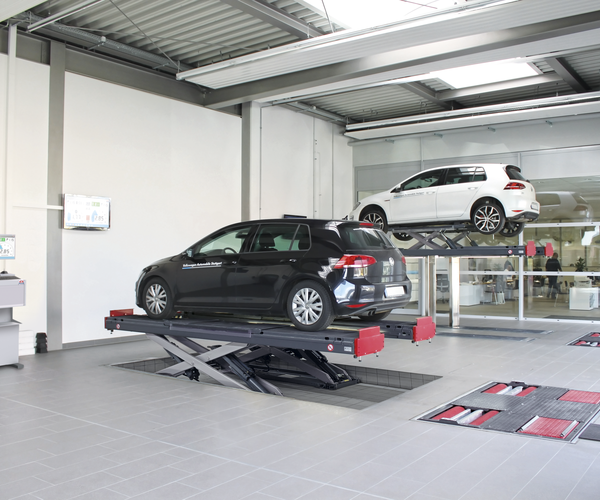

The roller brake tester MBT 2250 EUROSYSTEM is designed for the brake testing of cars and vans with axle loads of up to 3.5 t and is ideal for vehicle reception and diagnostic lanes. As it is possible to connect additional EURO floor units, the brake tester can be used as a base module for the setting up of test lanes.

product details / scope of delivery

Description of the MBT 2250 EUROSYSTEM:
Test lane-enabled roller brake tester for cars and vans with
an axle load of up to 3.5 t

  • Especially suitable for acceptance and diagnostic lanes
  • Basic module for setting up a test lane thanks to optional possibility of connecting additional EURO floor units
  • Test lane-enabled thanks to possibility of connecting MSD 3000 / MINC / TPS EURO floor units
  • For cars and vans weighing up to 3.5 t and with a track width of 2200 mm, plus those weighing up to 5 t and with a track width of 2800 mm as an option
  • When used with the optional lifting device, perfectly suitable for checking multi-axle car trailers.


  • Comprehensive package of functions for professional testing, such as:
    • Delayed automatic switch-on after entering the tester
    • Automatic start-up monitoring supplied as standard to avoid tyre damage
    • Automatic slip cut-off with pointer stop and automatic restart already included as standard
    • Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
    • Automatic cut-off after exiting the tester
    • Single-wheel switching for differentiated consideration of each wheel


  • Intuitive-to-use EUROSYSTEM software for the highest expert standards with:
    • Round instrument display for the braking forces Additional displays for difference, decelerations, and optional scale and force sensors.
    • Integrated user guidance with easy-to-understand user instructions
    • Continuous and graphic real-time display of all the measured values using the reference values time and force.
    • EUROSYSTEM supplied as standard with integrated SQL Server Express database
    • Multi-user capability option for productive allocation of the individual work packages to several workstations.
    • Easy to connect additional devices such as MLT 3000 to EUROSYSTEM
    • Configurable test report with all the measurement and evaluation results of the tests performed on a single print-out


  • Robust and long-lasting design due to:
    • Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
    • Roller surface welded
    • Optional, free plastic coating on the test rollers
    • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
    • Lockable main switch
    • RS 232 interface connection
    • Splash-proof motors work reliably, even under high-stress environmental influences
    • Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
    • Internationally recognised TÜV certificate as per issue 149/2021 of the Verkehrsblatt [German Transport Gazette]

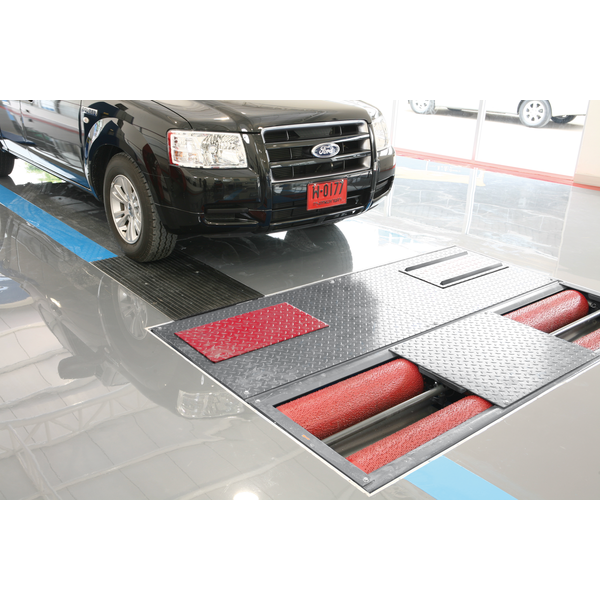

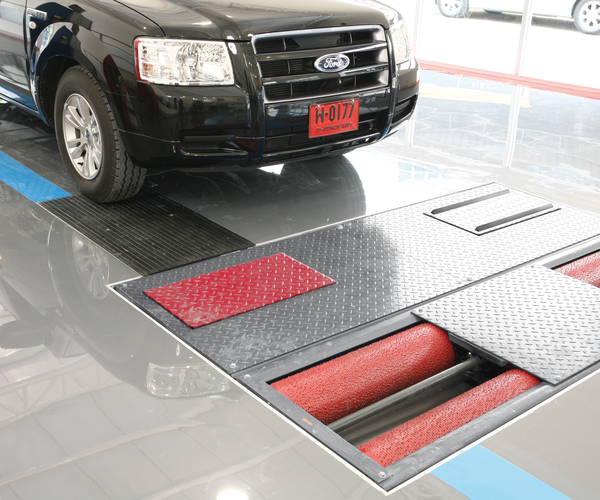

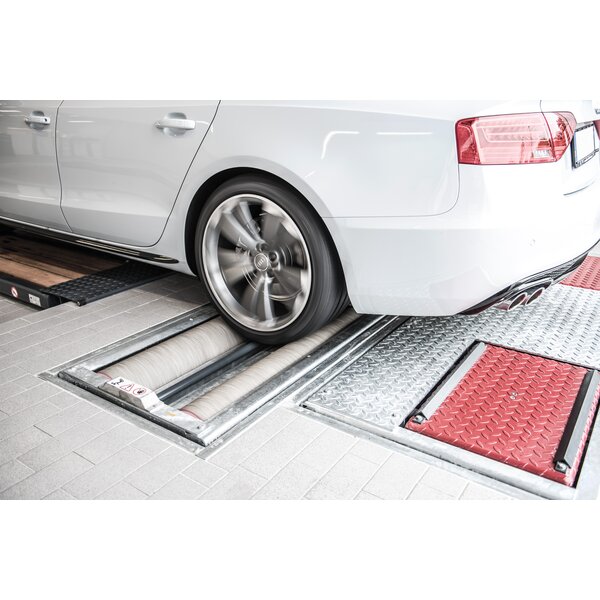

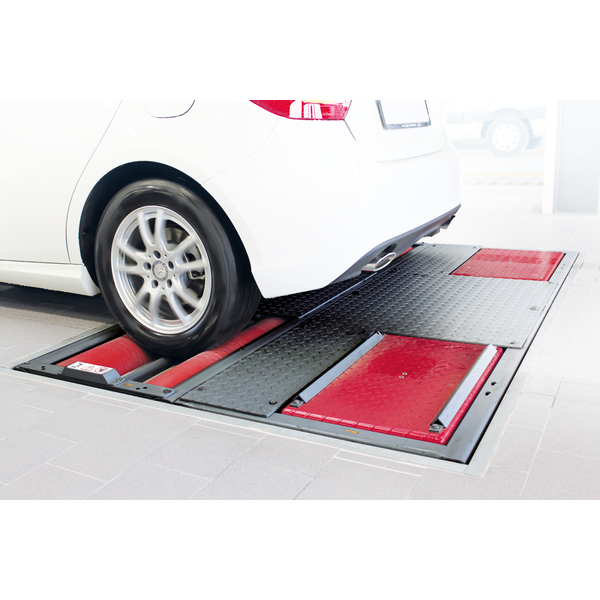

    • RS 2 roller set design
    • Self-supporting closed roller set
    • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Description of the MCD 2000 communication desk:

  • Robust and multifunctional metal casing
  • Integrated switch cabinet for housing electronic components
  • Lockable drawer for keypad and PC mouse, plus storage compartment for small items of equipment
  • VESA standard bracket for holding the all-in-one PC or PC monitor
  • Can be extended with optional PC storage compartment or side shelves
  • Varnished with high-quality powder coating: window grey, RAL 7040 (switch cabinet) anthracite grey, RAL 7016 (side faces)

Dimensions of
communication desk (HxWxD)approx.1230 x 860 x 350 mm
with printer compartment
option (HxWxD)approx. 1560 x 860 x 420 mm


Scope of delivery:

  • MCD 2000 communication desk with integrated switch cabinet
  • MBT 2000 RS 2 roller set with preparation forweighing equipment

Downloads

Sales documents

Brochures
Brochure MAHA EUROSYSTEM-V8
DE EN
Brochure (Printable version) MAHA EUROSYSTEM-V8 print
DE EN
Brochure MBT for cars and vans
DE EN
Brochure (Printable version) MBT for cars and vans
DE EN

Technical documentation

Operating Instructions
Operating Instructions MBT EUROSYSTEM
DE EN ES FR
Operating Instructions EUROSYSTEM V8
DE EN

Technical Data

Technical data:

Axle load (can be driven over)3500 kg
Min. track780 mm
Max. track2200 mm
Drivepower2 x 3 kW
Test speed5 km/h
Measured value display0 - 8 kN
Roller diameter202mm
Roller axle distance400 mm
gG fuse25 A
Power supply3/N/PE 400 V 50 Hz
Dimensions of roller set (L x W x H)2320x 680 x 280 mm
