product details / scope of delivery

Description:

  • Short warm-up time ensures rapid readiness for measurement
  • recise analysis of gas components HC, CO, CO2, O2 with lambda value calculation
  • Time-saving and trouble-free testing and diagnosis of smoke opacity/particle concentration w. partial flow method during free acceleration or under load of engine
  • Rapid emission test procedure
  • Intuitive operation, clear emission test structure
  • Maintenance-friendly thanks to easy accessibility
  • Future-proof with cutting-edge technology


Scope of delivery:

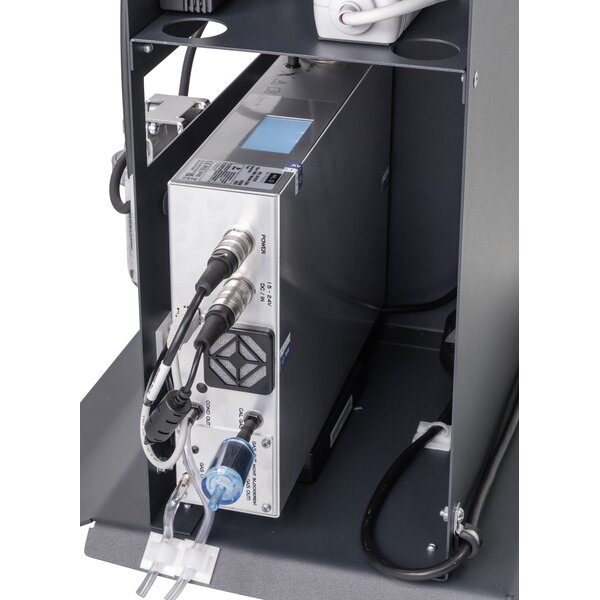

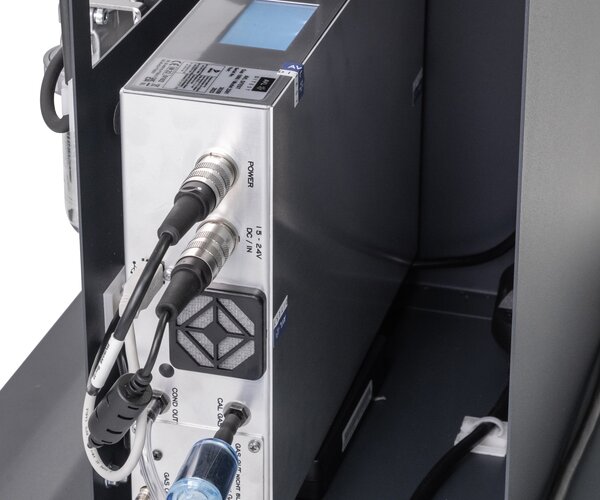

  • Gas analyser basic device in high-quality metal casing
  • Integrated display unit
  • Exhaust gas sampling probe 600 mm, 6000 mm Sondenschlauch

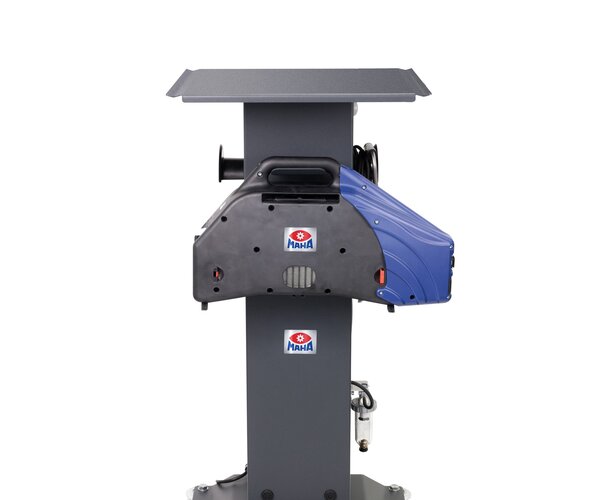

  • Opacimeter basic device in high-qualityplastic casing
  • Integrated display unit
  • Exhaust gas sampling probe 600 mm, 2000 mm probe hose
  • Bluetooth interface, USB connection optional


  • AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm
  • Condensate bottle 500 ml

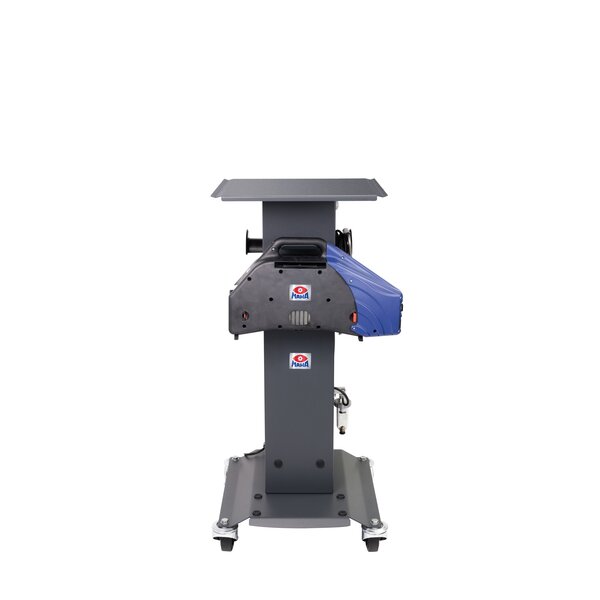

  • Trolley


Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical Data:
Gas Analyser

Measurement principle:
infrared spectrometryHC, CO, CO2
Measurable gasesHC, CO, CO2, O2
Electrochemical detectionO2
Operating conditions:
Temperature5°C to 40°C
Power supply110-230V 50/60 Hz
Accuracy class0 (OIML)
Dimensions(L x W x H)344 x 252 x 85 mm
Weightapprox. 2.2 kg
Measurement range / measured value resolution (max.):
CO0-15 % Vol. / 0.01
CO20-20 % Vol. / 0.01
HC0-9999 ppm / 0.1
O20-25 % Vol. / 0.01
Lambda (calculated)0.5-9.99 /0.01


Opacimeter

Measurement principleabsorbance measurement
Operating conditions:
Temperature5°C to 40°C
Power supply110-230V 50/60 Hz
Dimensions (L x W x H)395 x 136 x 285 mm
Weight .approx. 3.5 kg
Maximum exhaust gas temperature200°C
Measuring range, opacity0-99.9%
Resolution, opacity0.1%
Measuring range, absorption coefficient0-9.99 m-1
Resolution, absorption coefficient0.01 m-1
