product details / scope of delivery
Description:
- Time-saving and trouble-free testing and diagnosis of smoke opacity/particle concentration w. partial flow method during free acceleration or under load of engine
- Short warm-up time
- Intuitive operation, clear emission test structure
- Low maintenance
- Bluetooth interfaces, USB connection optional
Scope of delivery:

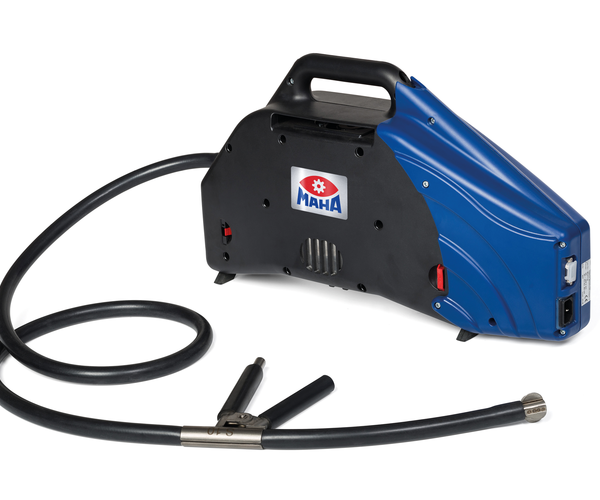

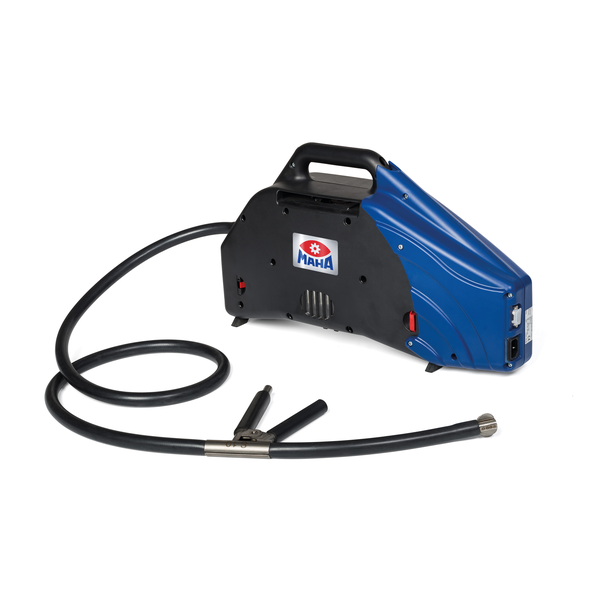

- Opacimeter basic device in high-quality plastic casing
- Bluetooth interface
- Exhaust gas sampling probe 600 mm, 2000 mm probe hose
- AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm
Technical Data
Technical Data:
| Measurement principle | absorbance measurement |
| Operating conditions: | |
| Temperature | 5°C to 40°C |
| supply | 110-230V 50/60 Hz |
| Dimensions (L x W x H) | 395 x 136 x 285 mm |
| Weight . | approx. 3.5 kg |
| Maximum exhaust gas temperature | 200°C |
| Measuring range, opacity | 0-99.9% |
| Resolution, opacity | 0.1% |
| Measuring range, absorption coefficient | 0-9.99 m-1 |
| Resolution, absorption coefficient | 0.01 m-1 |
