product details / scope of delivery
Description:

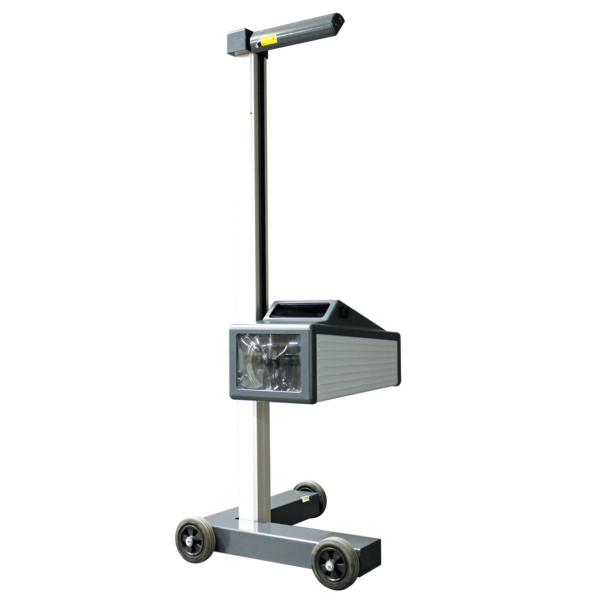

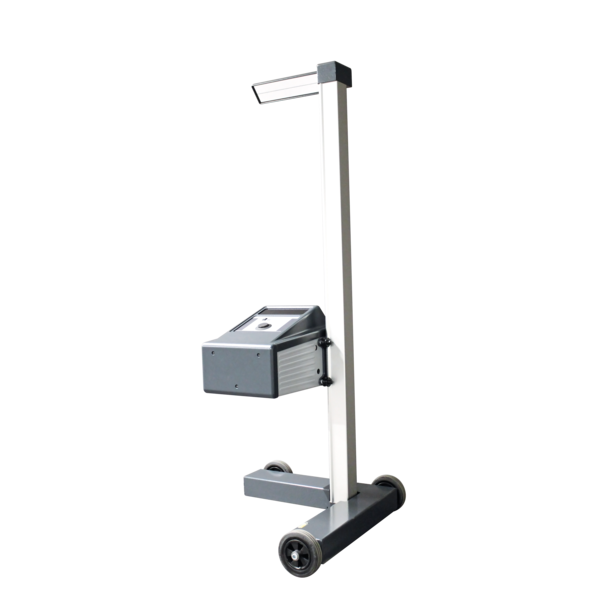

- Analogue device for quick and accurate testing and adjustment of vehicle headlights

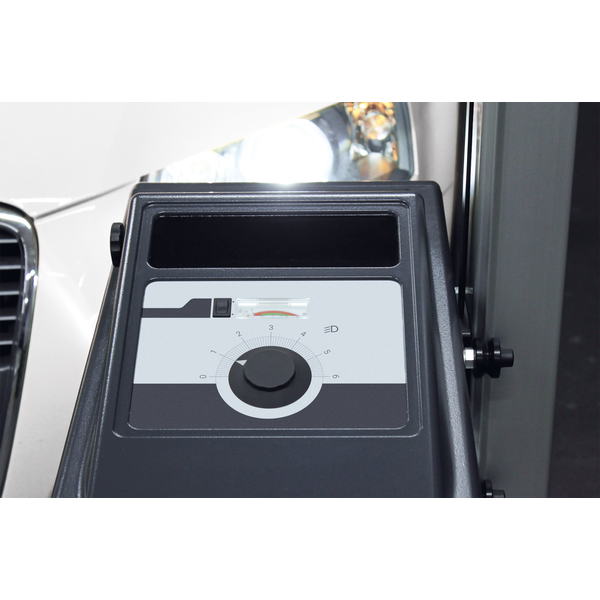

- Height-adjustable projection screen with % scale
- Subjective analysis of results based on visual assessment of the headlight projection on the screen
- Robust construction, also suitable for test lanes
- Rotatable mirror for device alignment to vehicle
- Automatic latching of the light collecting box to the precision aluminium guide column facilitates handling and optimises reproducibility
- Extremely thin Fresnel lens made from material with optimised refractive index for suppressing blue and red fringing increases measurement accuracy significantly

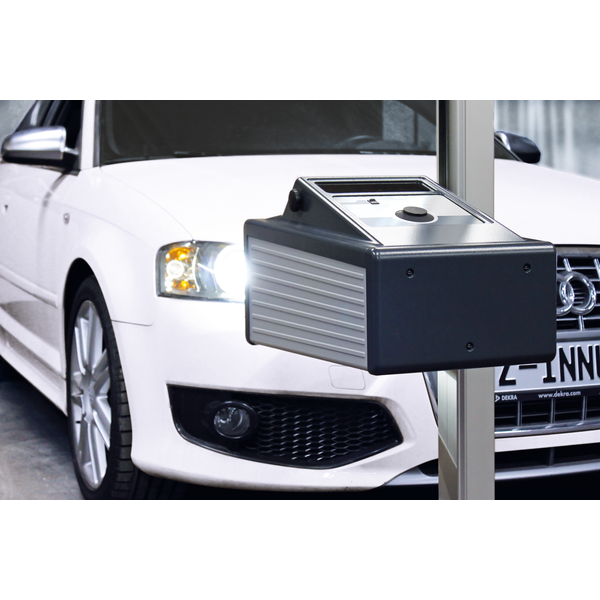

- Large Fresnel lens for easy positioning in front of the headlights helps speed up the entire set-up process
- Anodised heat deflection sheet to prevent overheating as a result of direct sunlight even without use of the device covering hood
- Pre-configured as standard for use on our optional semicircular profile rail stainless steel, so that equipment runs in straight line after alignment
Downloads
Sales documents
| Brochures | ||
|---|---|---|
|
Brochure MAHA Laufschienen
|
||
|
Brochure (Printable version) MAHA Laufschienen print
|
||
|
Brochure MLT 1000
|
||
|
Brochure (Printable version) MLT 1000
|
||
| Technical Datasheet | ||
|---|---|---|
|
Technical Datasheet MLT 1000
|
||
|
Technical Datasheet (Printable version) MLT 1000
|
||
Technical documentation
| Operating Instructions | ||
|---|---|---|
|
Operating Instructions MLT 1000
|
||
Technical Data
Technical Data:
| Measuring range: | |
| Underneath | 0 - 600 mm/10 m (0-6%) |
| Left | 0 - 1000 mm/10 m (0-10%) |
| Right | 0 - 1000 mm/10 m (0-10%) |
| Light intensity | 0 - 40000 cd |
| Illuminance | 0 - 64 lx |
| Measurement distance | 100 - 500 mm |
| Adjustment track lens centre over floor | 240 - 1500 mm |
| Temperature range | +5 - +40°C |
| Relative humidity | 20 - 80 % |
| Dimensions (H x W x D) | 1770 x 655 x 720 mm |
