product details / scope of delivery
Description:

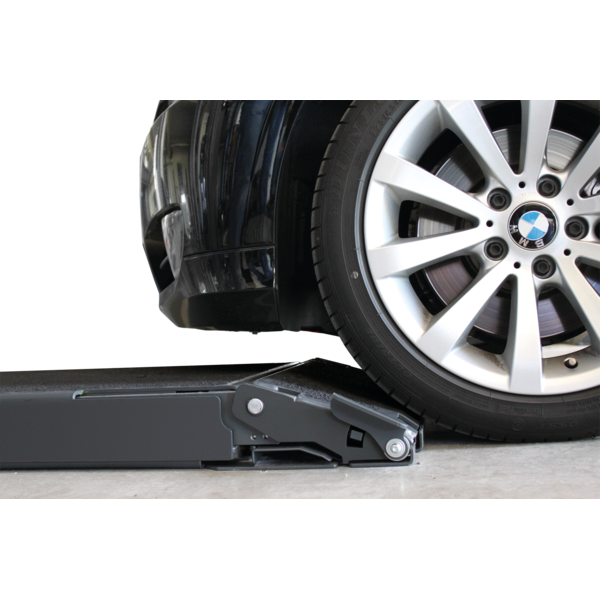

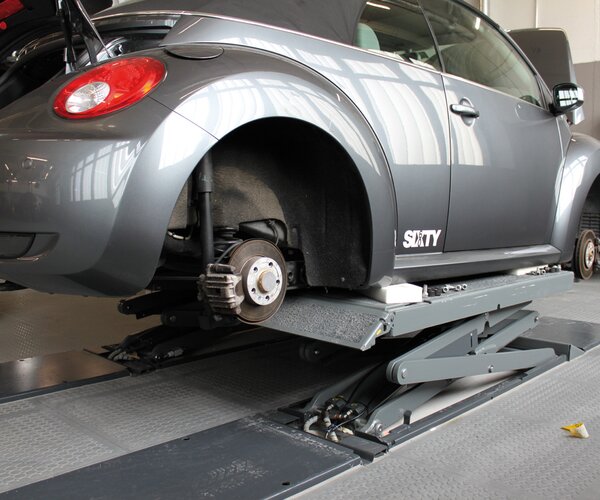

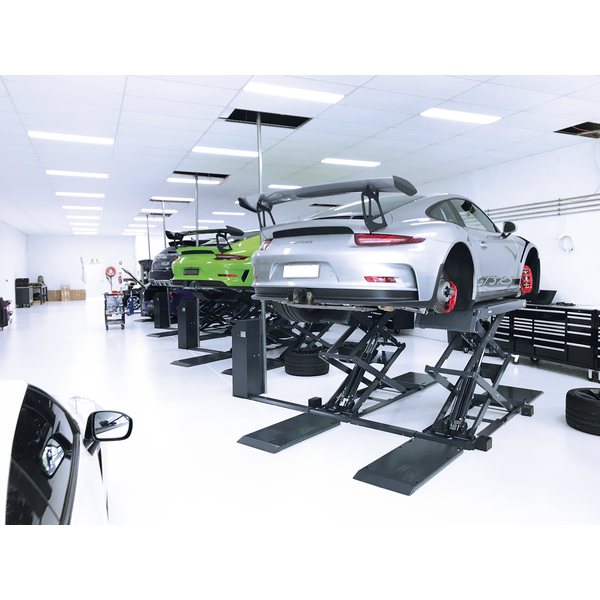

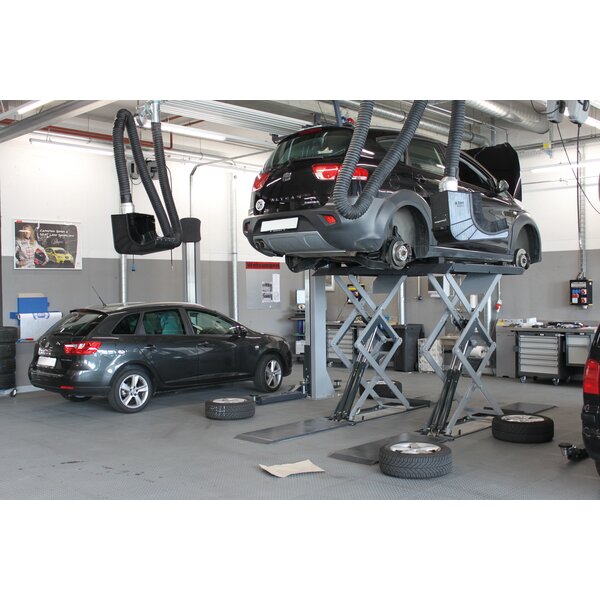

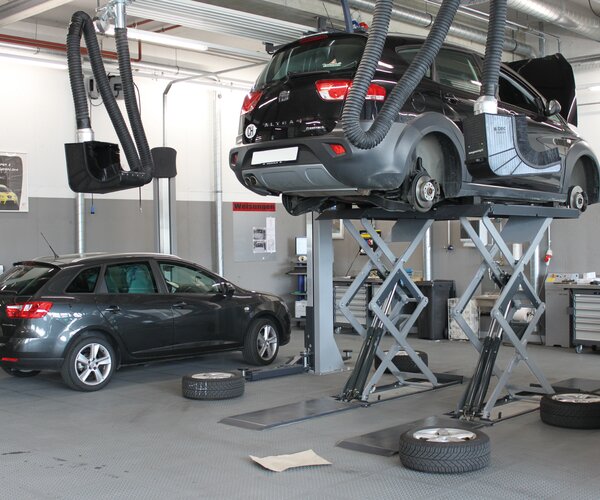

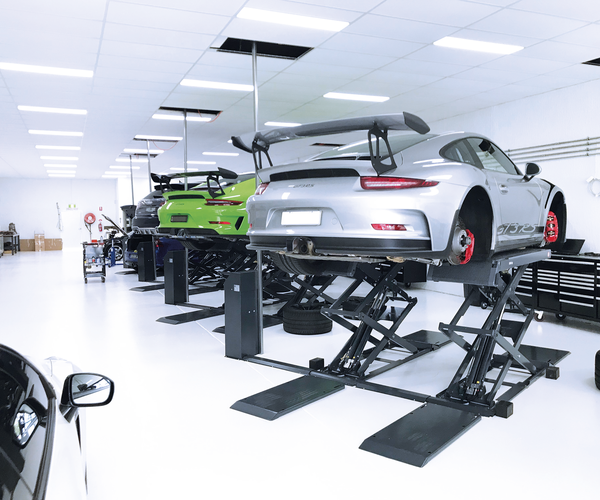

- Double scissor lift for on-ground installation with extremely low drive-over height

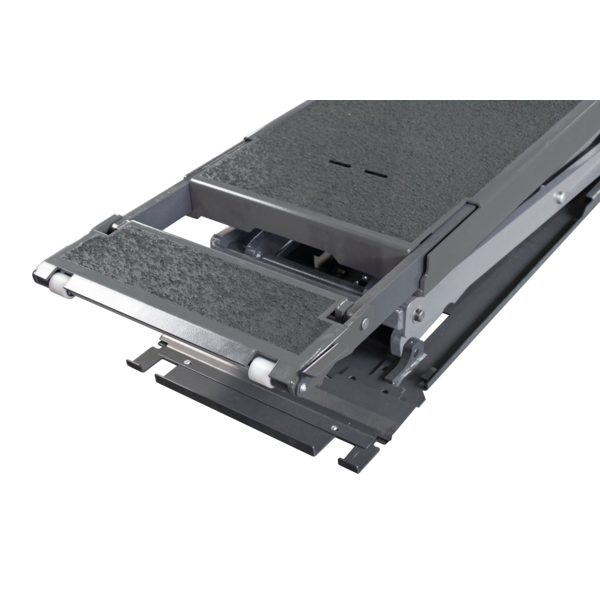

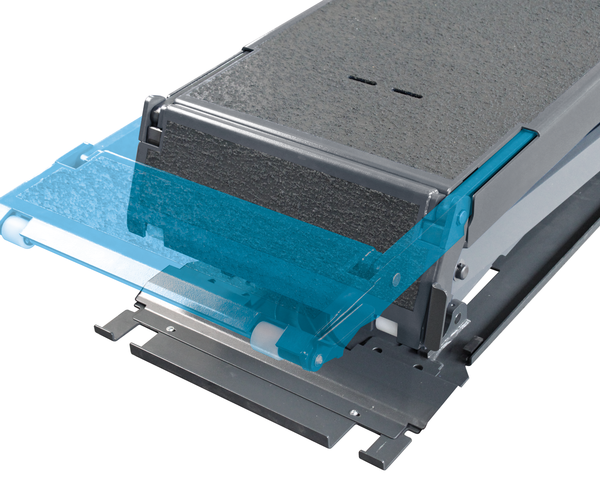

- High level of operating comfort due to continuously adjustable support plate length, no subsequent pushing of the vehicle required

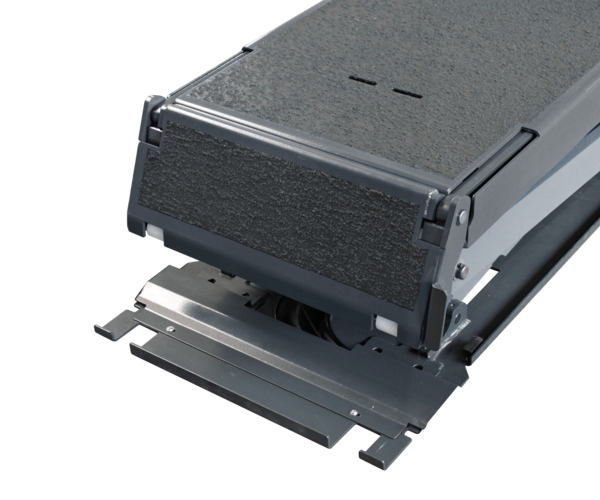

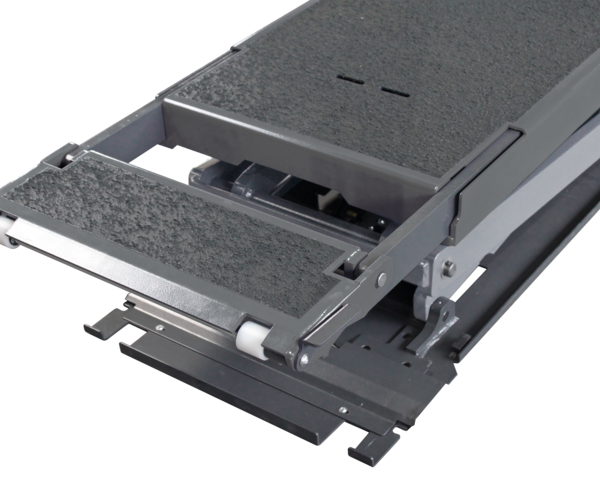

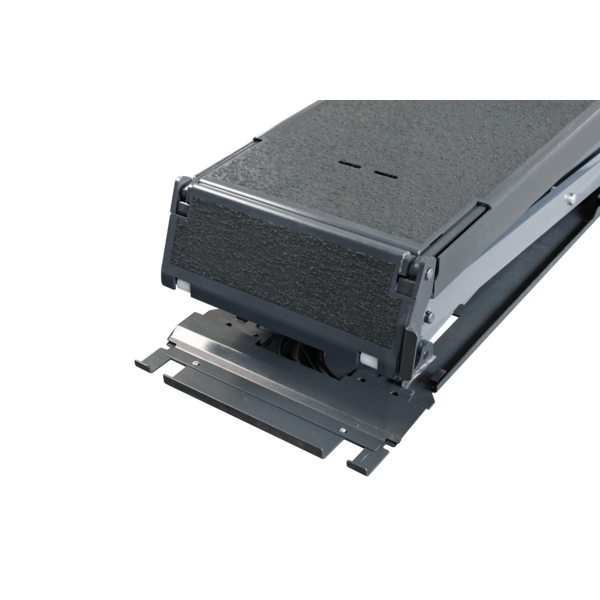

- Support plates and pull-outs granule-coated for optimum protection against vehicle slippage

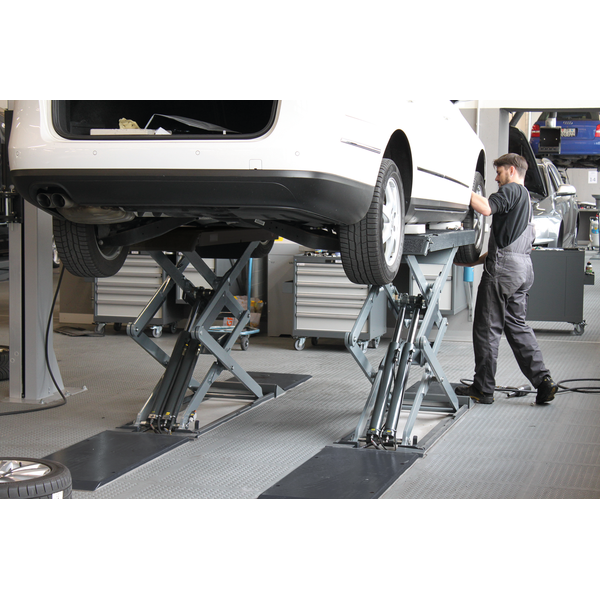

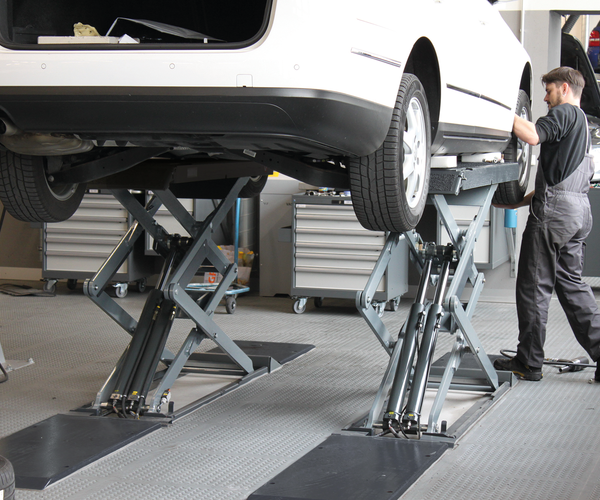

- Double the safety due to two redundant cylinders on each side of the scissors
- No compressed air required to operate the lifting platform
- Full lifting power even from the bottommost lifting height range thanks to innovative cylinder lift-out support
- Quiet setting in the lowest position due to lowering delay installed as standard
- Soft start from the lowest position for gentle attachment to the vehicle
- High level of lateral stability due to generously sized scissor arms
- No mechanical connection between the scissors, so no trip edges
- Simple EMERGENCY OFF function in the event of power failure
- Varnished with high-quality powder coating:
- Anthracite Grey, RAL 7016 (Support Plates, Base frame)
- Window Grey, RAL 7040 (Scissors, Control Desk)
- Base frame with dual-layer powdered varnish boosts corrosion-resistance
- Fully automatic synchronisation of support plates and high level of safety due to cylinder distance measurement system ( linear absolute measurement system )
- Crushing / shearing protection due to CE stop
- Optionally long drive-over ramps for lowered vehicles
Scope of delivery:
- Double scissor lift, type: TWIN F IV 3.5 A
- 2 drive-over wedges

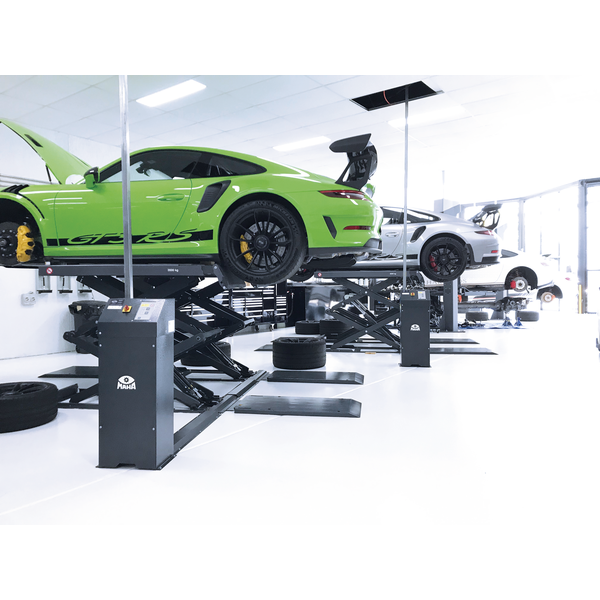

- Operation desk, upright, with controller and hydraulic unit
- Lockable main switch
- Hydraulic hoses for 2 m distance between platform and unit
- Cover plates for hydraulic hoses
- Operating manual and test log
- EC CE conformity instructions
- Transport packaging
Downloads
Sales documents
| Brochures | ||
|---|---|---|
|
Brochure TWIN
|
||
|
Brochure (Printable version) TWIN
|
||
| Technical Datasheet | ||
|---|---|---|
|
Technical Datasheet TWIN F IV 3.5 A
|
||
|
Technical Datasheet (Printable version) TWIN F IV 3.5 A
|
||
Technical documentation
| Operating Instructions | ||
|---|---|---|
|
Operating Instructions TWIN F IV 3.0 / 3.5
|
||
Technical Data
Technical data:
| CE load capacity | 3500 kg |
| Max. lifting height | 1920 mm |
| Lifting / lowering time, load-dependent | approx. 35 / 35 s |
| Drive-over height | 105 mm |
| Width of support plates | 605 mm |
| Length of support plates | 1550 - 2100 mm |
| Total width (recommended) | 1955 mm |
| Drive power | 2.2 kW |
| Operating pressure | 270 bar |
| Power supply | 3/N/PE 400 V 50 Hz |
| gG fuse | 16 A |
| Weight including packaging | approx. 900 kg |
| Packaging dimensions (L x W x H) | 2100 x 760 x 710 mm |
| Hydraulic oil volume (not included) | approx. 9 l |
