MA STAR 5.5 VP 451187

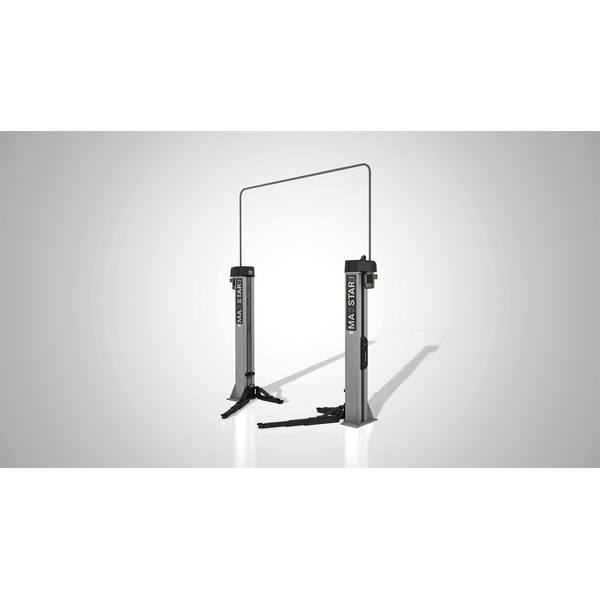

The 5-star lift MA STAR 5.5, which features stable and torsion-resistant columns of edged H-section steel, lifts cars and vans with a total weight of up to 5.5 t. The two post lift guarantees triple safety thanks to its spindle nut package with self-locking thread, "giraffe" (patent pending) nut breakage detection and motor brake. The MA STAR also impresses with its straightforward plug and play commissioning as well as its intuitive, LED-based operation.

COMFORT version - options available.

product details / scope of delivery

COMFORT version - options available
(colour, support aid, mounted on roller bearings)

  • RAL 7040 -

Description:

  • Load capacity 5500 kg
  • triple safety
  • Symmetrical support arms
  • Variable installation width
  • Lifting capabilities, from small cars, to transporters with long wheel bases
  • High-quality powder coating:
    • Window grey, RAL 7040 (columns)
    • Anthracite grey, RAL 7016 (lifting carriages, support arms)


Scope of delivery:

  • 2 columns with operating unit
  • 4 symmetrical support arms double telescopic
  • Support disc plug-in system
  • Cable bridge
  • Spindle oil (0.5 l)
  • Operating instructions
  • CE Declaration of Conformity
  • Transport packaging


Downloads

Sales documents

Brochures
Brochure MAHA MA-STAR
DE EN
Brochure (Printable version) MAHA MA-STAR print
DE EN
Technical Datasheet
Technical Datasheet MA STAR 5.5
DE EN
Technical Datasheet (Printable version) MA STAR 5.5
DE EN

Technical documentation

Operating Instructions
Operating Instructions MA STAR 3.5 | 5.5 | 6.5 (Complete version)
DE EN ES FR
Product drawings
MA STAR 5.5 Data sheet, main dimensions (drive through clearance 2630 mm)
DE EN
MA STAR 5.5 Data sheet, main dimensions (drive through clearance 2530 mm)
DE EN
MA STAR 5.5 Data sheet, main dimensions (drive through clearance 2780 mm)
DE EN
MA STAR 5.5 MB Data sheet, main dimensions (drive through clearance 2630 mm)
DE EN

Technical Data

Technical data:

Load capacity CE5500 kg
Max. lifting height2065 mm
Lifting / lowering time (load-dependent)approx. 40/40 s
Bottom clearance of the support arms120 mm
Adjustment range, support disc85 - 115 mm
Pick-up range, support arms965 - 1845 mm
Overall width*4200 mm
Outside base plates*3789 mm
Outside columns*3579 mm
Inside columns*2949 mm
Drive-through width2530 - 2780 mm
Column height3243 mm
Max. overall height (with cable bridge)5193 mm
Drive power2 × 4.0 kW
Power supply3/N/PE 400 V 50 Hz
FuseC32 A
Weight1320 kg
Packaging dimensions (L x W x H)
2 Packages à3185 x 800 x 1000 mm
Required concrete qualityC20/25
Required thickness of concrete slab w/o screed min.180 mm

*Dimension based on Drive-through width 2630 mm
