product details / scope of delivery

Description:

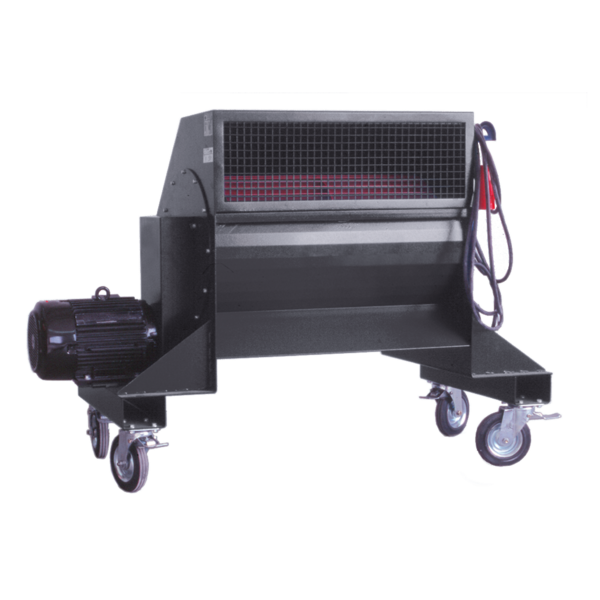

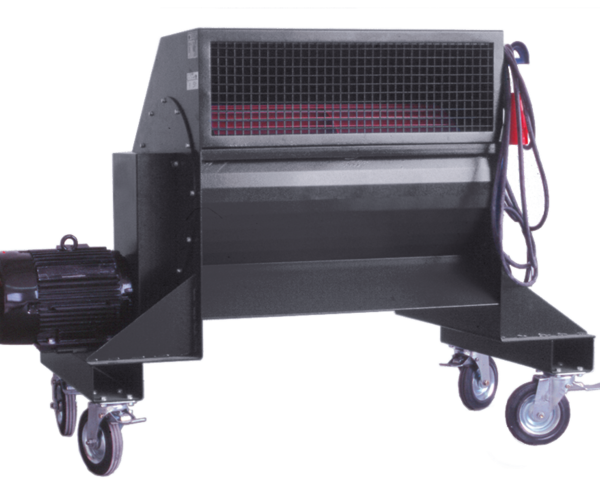

  • Powerful universal air-stream fan for all trucks
  • Air power can be set to 2 levels
  • Wide and elevated exhaust passage for targeted air routing towards the vehicle radiator and underneath the vehicle in order to avoid heat build-up
  • Prevents vehicle damage and overheating of the drive units
  • Easily manoeuvrable with 4 rubber-tyred steerable fixed castors
  • Varnished with high-quality powder coating: Window Grey, RAL 7040

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical Data:

power0 - 26500 m³/h
Airflow velocity78 / 98 km/h
Motor power2.5 / 6.5 kW
Fuse35 A
Power supply3/N/PE x 400 V 50 Hz
Air outlet opening (L x W)890 x 260 mm
Average air outlet height1095 mm
Weight350 kg
Dimensions (H x W x L)1265 x 700 x 1620 mm
