TPS 25 EURO VP 640005

The TPS 25 EURO speedometer test bench is perfect for assessing deviations in the speedometer speed of two-wheelers of up to 1.5 t. The speedometer test can be performed with up to ten freely selectable test points. In addition, the distance measurement can be performed with up to ten freely selectable test points.

product details / scope of delivery

  • Ideal for assessing the variation in tachometer speed on two-wheeled vehicles
  • Tachometer testing with up to ten freely selectable test points
  • Measurement of distance travelled with up to ten optional test points
  • Automatic analysis of:
    • Speed according to tachometer display (V target)
    • Actual speed (V actual)
    • Deviation in %
    • Max. speed
    • Distance travelled (remote control recommended)
  • Graphic representation on PC screen

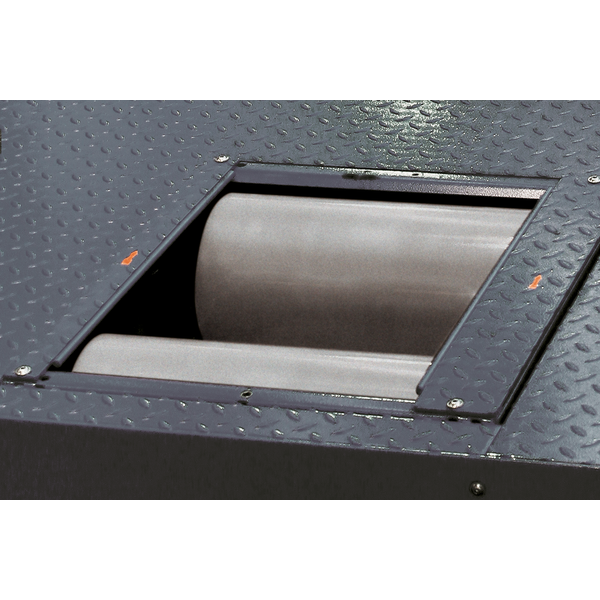

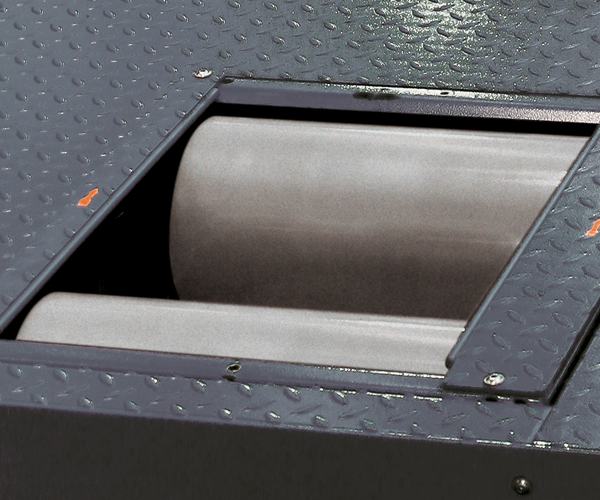

  • Self-supportingroller set with wet-coated rollers
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Standard Delivery:

  • TPS 25 EURO floor unit
  • Pre-configured for connection to EUROSYSTEM test line
  • Pre-configured for stand-alone use (requires MCD 2000 communication desk with electronics)


Downloads

Sales documents

Brochures
Brochure TPS-Series
DE EN ES FR
Brochure (Printable version) TPS-Series
DE EN ES FR
Technical Datasheet
Technical Datasheet TPS 25 EURO
DE EN
Technical Datasheet (Printable version) TPS 25 EURO
DE EN

Technical Data

Technical Data:

Axle load1500 kg
Roller diameter200 mm
Roller axle distance380 mm
Roller length400 mm
Roller set dimensions (H x W x L)225 x 560 x 605 mm
Weight85 kg
