Détails produit / contenu de la livraison
Description:

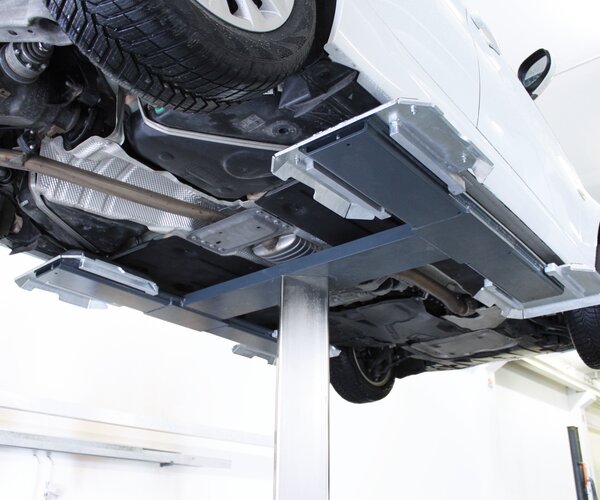

One-post inground lift with flat head supports,
to pick up vehicles in the sill area.
Suitable for cars, pick-up points underneath the vehicle

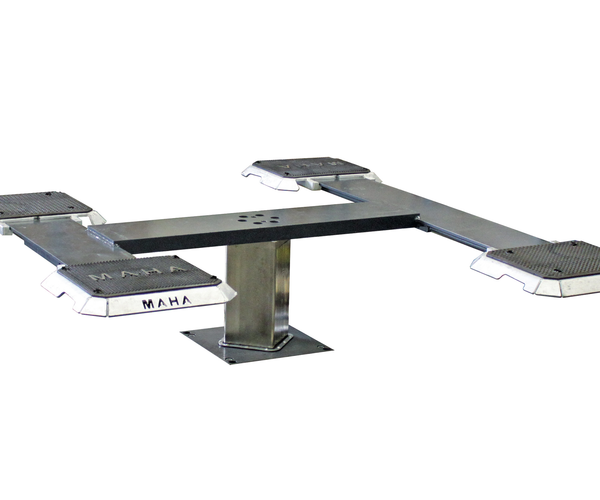

Flat head support (FT H):
- Flat head extensions adaptable for different vehicle types, telescopic from 1400 ýÿ 2000 mm in standard
- Flexible, optional range of support plates in 'longer - wider - flatter' versions ensures perfect accommodation of all current and future vehicle models
- Large pick-up areas due to exchangeable support plate system cover the entire vehicle spectrum
- Easier, tyre-preserving drive-on thanks to all-round bevelled extensions combined with low construction height and rubber support plate (height no more than approx. 60 mm)
- Rubber support plate enables time-saving direct pick-up
- Optional flush-floor installation for easier passing over lift
SQUARE lift unit:
- Outstanding rigidity and optimum safety thanks to torsion-resistant square posts
- Low-noise operation due to very quiet motor in the installation box
- Optionally usable with mineral organic oil with high durability
- Electronic lift control with no-contact, wear-free limit switches and visual error display
- Very smooth running due to sliding, long-life special nickel coating on posts with robust, low-maintenance post guide
- Protected internal hydraulic safety cylinder guarantees lengthy service life
- Double cylinder lifting unit for redundant operation
- High lifting/lowering speeds are guaranteed in a load-dependent range of 20 ýÿ 26 seconds
- Integrated, battery-operated emergency lowering
- Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system
Scope of delivery:
- Flat head supports, hot-dip galvanised
- Lift unit with double cylinder and clamping system
- Wiring and mounting material
- Installation box/installation frame not included in delivery
- Emergency lowering cable for connection to switch box
- Control unit with 10 m control cable (oil flex cable)
- Lockable main switch
- Pinch point protection by CE stop instead of foot guard
- Operating instructions
- CE/UKCA Declaration of conformity
Caractéristiques techniques
Technical data:
| Load capacity CE | 3000 kg |
| Longitudinal support extendable in notch steps | . |
| 1400 - 2000 mm | |
| Transverse support by repositioning | 880 - 1820 mm |
| Size of support plate (L x B) | 355 x 400 mm |
| Lifting height max. | 1960 mm |
| Installation depth | 2382 mm |
| Post dimensions, square | 180 mm |
| Lifting/lowering time, load-dependent | approx. 28/20 s |
| Hydraulic oil quantity (not incl. in delivery) approx. 28 l | |
| Oil quality | HLP-D 22 |
| Operating pressure | 140 bar |
| Recommended installation box | VZ 972554 |
| Control unit (H x W x D) | 320 x 220 x 120 mm |
| Drive power | 3.0 kW |
| Fuse protection gG | 16 A |
| Power supply | 3/N/PE 400 V 50 Hz |
