MPJ 16.5/750 1S FA VP 454273

Détails produit / contenu de la livraison

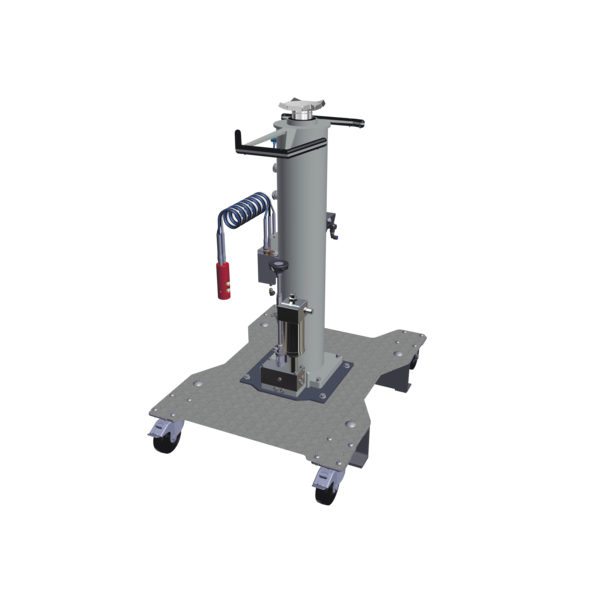

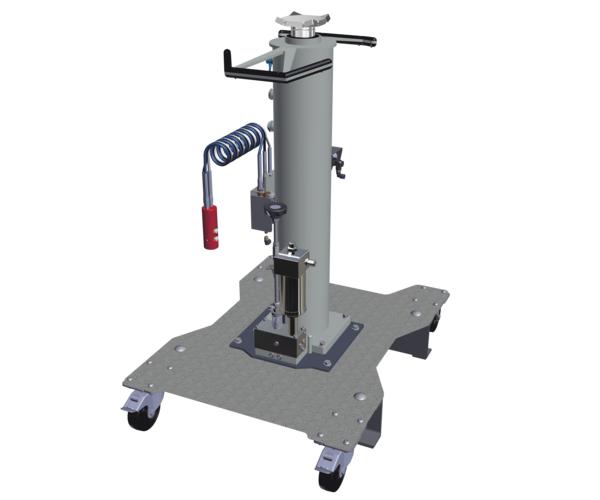

1-stage telescopic, free-moving, floor-running

Description:
Automatic pit jack
with pneumatic motor and fast control
Specifically for wheel/brake works in conjunction with axle
lifting beams and support systems for trucks and buses
with 16.5 t load capacity

Control:

• Efficient fast control for UP and DOWN movement Integrated as standard
• Precision, user-friendly, pneumatic manual control cylinder with magnetic bracket for convenient and flexible quick stroke andload lifting with enlarged view into operator radius
• Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control

Design:

• Freely movable floor-runnable pit jack for flexible use at various work locations, e.g. workshops or work pits
• Floor-running carriage with four guide rollers, two of which are fitted with brakes to prevent rolling away (without load)
• Spring-based roll guard: jack automatically lowers itself to floor once a load capacity of about 1000 kg is reached, securing itself in the process
• Almost unobstructed passage through the work pit thanks to floor-running carriage
• Piston support can be increased by max. 2 x 200 mm

(option for very deep pits)

• Integrated inspection window for checking oil quality and quantity of the pit jack
• Corrosion-resistant piston rods thanks to self-lubrication
• High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis

Scope of delivery:

• Pit jack with hydro-pneumatic automatic control system
• Carriage with four guide rollers
• Standard support lugs 120 x 120 mm
• Operating instructions
• ECconformity certificate
• Colour: Jack base frame RAL 7040
  • Attachments and carriage RAL 7016
